Smart Dialer 4G LTE - IoT VOICE for elevators for emergency voice communication ➤ Smart Dialer LTE- IoT VOICE communicator

BUY NOW from ~~123€~~ to 69€ / lot (10 pcs) VAT not inc.

valid to 31.12.2024

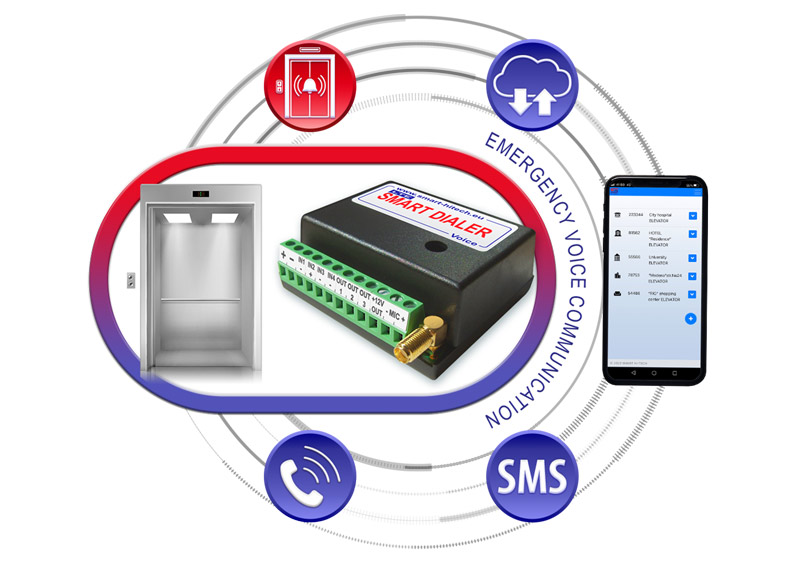

NEW! SMART DIALER 4G LTE - IoT VOICE - THE BRAND NEW UNIVERSAL GSM COMMUNICATOR FOR EMERGENCY VOICE COMMUNICATION FOR ELEVATORS OF ANY TYPE AND BRAND

IoT REMOTE CONTROL via cloud system (CLOUD), WEB and mobile devices

✔ Two-way voice communication between the elevator's cabin and a technician (service centre) for emergency situations EN81-28:2022

✔ FREE application for iOS и Android

✔ FREE software for set-up and configuration

✔ Quick setup for a minute via cloud system (CLOUD) by mobile or computer, or by SMS commands

✔ Five telephone numbers of the elevator company (users) can be notified by a call (VOICE CALL) and / or SMS notification, via Cloud System or to communicate with stuck passenger on emergency situation

✔ Remotely controlled volume levels

✔ Compatible with all mobile operators all over the world

✔ Built-in speaker and external microphone supported and emergency power supply in the device

✔ Send pre-recorded voice massage

✔ Direct connection to the Emergency call button and/or a Reed relay for additional blockage

✔ Direct connection to the power supply within the buttonhole

Purpose of Use:

The last generation 4G LTE communicator SMART DIALER 4G LTE – IoT VOICE with built-in microphone, speaker and battery as a backup power supply is used in an emergency situation for fast, two-way voice communication between a stuck passenger in the elevator cabin or the company for maintenance, repair and production of elevators. It can also used to remotely restart the elevator controller in the event of an emergency or additional lock. Compatible with any type and brand elevators.

Remote and quick setup per minute via cloud system (CLOUD)

On site via computer or laptop, connected to the SMART DIALER 4G LTE IoT VOICE device via USB-C cable and setup tool. Smart Dialer IoT Sercice tool, which must be pre-downloaded from our website: www.smart-hitech.eu

Functionality:

Outputs for connecting Yellow, green light and sound signaling as standard EN81-28:2022;
Quick setting of all device parameters in accordance with the requirements of the EN81-28:2022 standard with just a click of a button and connection according to the guide diagram or similar;
ONLINE monitoring an unlimited number of 4G LTE SMART DIALER VOICE devices. All devices owned by the elevator company can be connected to one or more of its profiles (accounts) created in SG Cloud and monitored at any time and from any place in the world - FREE MONITORING;
Automatic report and activation of a certain period of time proving the working condition of the device. Possibility to set from 0h. up to 720 hours (EN81-28:2022). Recording in the archive of events and the possibility of its visualization and printing from a distance without the need to go to the place where the device is installed;
Five telephone numbers of the elevator company (users) can be notified by a call (VOICE CALL) and / or SMS notification or to communicate with stuck passenger on emergency situation
UNLIMITED NUMBER OF USERS Via cloud system (CLOUD), WEB and mobile devices can be notified or remotely controlling and programing Smart Dialer IoT VOICE.
Ability to add and command the device with up to 500 phone numbers.
Portable dialer dimensions, allowing for direct installation within the buttonhole of the lift cabin.
If a currently dialled number does not answer, the device has an algorithm allowing it to continue dialling and redialling numbers from a previously set list.
Compatible with all elevator models.
Direct connection to power supply.
Direct connection to the Emergency call button and/or a Reed relay for additional blockage.
Specialised output for connecting to an LED or other light sources for visualising calls.
Send pre-recorded voice massage ( for models with additional microphone included in the package ).
3 modes output - pulse, trigger and indicator
Specialised Emergency 12V output able to power up connected devices during power loss.
<
In the event of a power failure, the output maintains the last state it was in, resuming it once power is back on.
Built-in speaker.
Ability to remotely change volume levels and microphone sensitivity setting during call by pressing a button on the calling phone.
Report via SMS for inputs and outputs position supply voltage level, battery level and GSM signal level.
Built-in internal device battery allows constant emergency voice communication of up to 60 minutes and can last up to 24 hours in ''Standby'' mode.
Ability to measure mobile network quality in real time with the goal of choosing the best position for the antenna.
